What specifications matter for truck-mounted cranes on 4x4?

When considering 4x4 Truck-Mounted Cranes, several key specifications are crucial. The crane's lifting capacity, boom length, and outrigger spread are paramount. These factors directly influence the crane’s stability, reach, and overall performance in challenging terrains. Additionally, the truck's chassis strength, engine power, and overall stability play vital roles. The crane's control system, safety features, and ease of operation are equally important. Other factors include the crane's weight distribution, hydraulic system efficiency, and compatibility with various terrains. Understanding these specifications ensures optimal performance and safety in diverse working conditions.

Comprehending the Core Components of 4x4 Truck-Mounted Cranes

4x4 truck-mounted cranes are versatile machines that combine the mobility of a four-wheel-drive vehicle with the lifting capabilities of a crane. These powerful pieces of equipment are essential in various industries, including construction, utilities, and emergency services. To fully grasp the importance of their specifications, it's crucial to understand the core components that make up these machines.

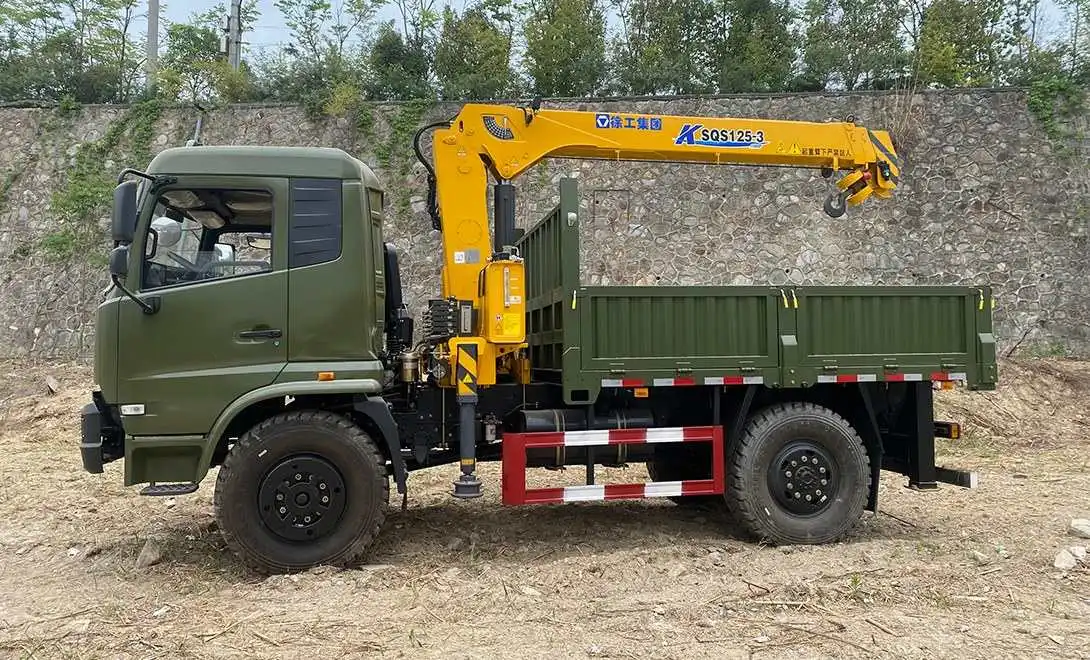

4x4 crane carrier

The 4x4 Truck Chassis

The foundation of any 4x4 Truck-Mounted Crane is the 4x4 truck chassis, which serves as the core structural element supporting the entire system. This robust platform provides the essential stability and maneuverability needed for reliable operation across uneven and demanding terrains. Designed to handle both the crane’s own mass and the heavy loads it lifts, the chassis must balance strength with flexibility. A well-engineered 4x4 chassis ensures smooth mobility, even in off-road environments, making it indispensable for construction, mining, and emergency rescue applications.

Key specifications for the truck chassis include:

Gross Vehicle Weight Rating (GVWR)
Wheelbase length
Engine power and torque
Transmission type and gear ratios
Suspension system

These factors contribute to the overall performance of the truck-mounted crane, affecting its stability, mobility, and load-carrying capacity.

The Crane Superstructure

Mounted on the truck chassis is the crane superstructure, the heart of the lifting system that performs all primary load-handling tasks. This crucial component comprises the boom, hydraulic system, slewing mechanism, and precision control interface. The boom’s design—whether telescopic or articulating—determines the crane’s maximum reach and flexibility, while the hydraulic system provides the power required for smooth, controlled movements.

Advanced control mechanisms enhance operator precision, safety, and efficiency during lifting operations. The specifications of the crane superstructure therefore play a decisive role in defining the overall performance, reliability, and productivity of a 4x4 Truck-Mounted Crane.

Critical specifications for the crane superstructure include:

Maximum lifting capacity
Boom length and extension mechanism
Slewing range and speed
Hydraulic system pressure and flow rate
Control system type (manual, electronic, or remote)

These specifications determine the 4x4 Truck-Mounted Crane’s ability to safely and efficiently handle loads of varying weights at different radii and lifting heights. Factors such as boom length, hydraulic strength, and load chart ratings directly influence how the crane performs under diverse working conditions.

A well-matched combination of these parameters ensures optimal balance between lifting power and stability. For potential buyers, understanding these specifications is essential when evaluating performance needs, job site requirements, and safety margins, ultimately ensuring the chosen crane delivers dependable results across multiple applications.

Outriggers and Stabilization Systems

To ensure stability during lifting operations, 4x4 truck-mounted cranes are equipped with outriggers and stabilization systems. These components are essential for maintaining balance and preventing tipping, especially when working on uneven terrain or with heavy loads.

Important specifications related to outriggers include:

Outrigger spread (width and length)
Outrigger type (H-style, A-frame, or vertical)
Ground pressure distribution
Automatic leveling capabilities

The effectiveness of these stabilization systems is vital to the 4x4 Truck-Mounted Crane’s overall safety, balance, and lifting performance, especially when operating on uneven or unstable terrain. Properly designed outriggers and leveling mechanisms help distribute the load evenly, minimizing the risk of tipping or structural strain during operation.

Advanced stabilization systems often include hydraulic extensions and automatic leveling features, ensuring consistent support across all conditions. In demanding work environments such as construction sites, oilfields, or rescue zones, reliable stabilization directly translates to safer, more efficient, and more precise crane performance.

Key Performance Specifications for 4x4 Truck-Mounted Cranes

When evaluating 4x4 truck-mounted cranes, several performance specifications stand out as particularly important. These metrics not only determine the crane's capabilities but also its suitability for specific applications and work environments.

Lifting Capacity and Load Charts

Perhaps the most critical specification for any crane is its lifting capacity. This metric indicates the maximum weight the crane can safely lift and is typically expressed in tons or kilograms. However, it's important to note that the lifting capacity varies depending on the boom length and working radius.

Load charts provide a comprehensive overview of a crane's lifting capabilities under different conditions. These charts display the maximum load that can be lifted at various boom lengths and radii. When comparing 4x4 truck-mounted cranes, it's essential to carefully analyze these load charts to ensure the crane can meet your specific lifting requirements.

Boom Length and Reach

The boom is the extendable arm of the crane that determines its vertical and horizontal reach. Boom length specifications typically include:

Minimum boom length
Maximum boom length
Number of telescopic sections
Extension and retraction speeds

A longer boom provides greater reach, allowing the crane to access hard-to-reach areas or lift loads over obstacles. However, it's important to balance reach with stability and lifting capacity, as longer booms generally reduce the maximum load that can be lifted at extended radii.

Mobility and Maneuverability

The 4x4 capabilities of truck-mounted cranes set them apart from their two-wheel-drive counterparts. Key mobility specifications include:

Ground clearance
Approach and departure angles
Gradeability (ability to climb slopes)
Turning radius

These specifications determine the crane's ability to navigate rough terrain, overcome obstacles, and access remote work sites. For operations in challenging environments, such as off-road construction or disaster response, these mobility features can be just as important as the crane's lifting capabilities.

Safety and Operational Features of 4x4 Truck-Mounted Cranes

While performance specifications are crucial, the safety and operational features of 4x4 truck-mounted cranes are equally important. These features not only ensure the well-being of operators and workers but also contribute to the overall efficiency and reliability of the equipment.

Advanced Control Systems

Modern 4x4 truck-mounted cranes are equipped with sophisticated control systems that enhance precision, safety, and ease of operation. Key features to look for include:

Load moment indicators
Anti-two block systems
Overload protection devices
Integrated diagnostics and monitoring
Remote control options

These advanced control systems help prevent accidents, optimize lifting operations, and provide valuable data for maintenance and performance analysis.

Stability and Anti-Tipping Mechanisms

Given the dynamic nature of crane operations, stability is paramount. Look for 4x4 truck-mounted cranes with robust stability systems, including:

Automatic outrigger deployment and leveling
Variable outrigger positioning
Counterweight systems
Tilt sensors and alarms

These features work together to maintain the crane's stability across various terrains and working conditions, reducing the risk of tipping and enhancing overall safety.

Ergonomics and Operator Comfort

While often overlooked, operator comfort and ergonomics play a significant role in the safe and efficient operation of 4x4 truck-mounted cranes. Important features in this category include:

Adjustable operator seats with good visibility
Climate-controlled cabins
Intuitive control layouts
Noise and vibration reduction systems

These ergonomic features help reduce operator fatigue, improve concentration, and ultimately contribute to safer and more productive crane operations.

Conclusion

When evaluating 4x4 truck-mounted cranes, it's essential to consider a wide range of specifications that impact performance, safety, and versatility. From the fundamental aspects of lifting capacity and boom length to the advanced features of control systems and stability mechanisms, each specification plays a crucial role in determining the crane's suitability for specific applications.

By carefully analyzing these specifications and understanding their implications, buyers can make informed decisions that align with their operational needs and work environments. Remember that the ideal 4x4 truck-mounted crane balances power, mobility, and safety features to deliver optimal performance across diverse terrains and lifting scenarios.

FAQ

What is the average lifting capacity of a 4x4 truck-mounted crane?

The lifting capacity varies widely depending on the model and size, ranging from 10 to over 100 tons.

How important is the outrigger spread for stability?

Outrigger spread is crucial for stability, especially when lifting heavy loads or working on uneven terrain.

Can 4x4 truck-mounted cranes operate in extreme weather conditions?

Many modern 4x4 truck-mounted cranes are designed to operate in various weather conditions, but specific temperature and wind speed limitations may apply.
