Can You Mount a Crane on a 4x4 Truck Chassis? A Technical Guide

Introducing the 4x4 Truck-Mounted Crane System

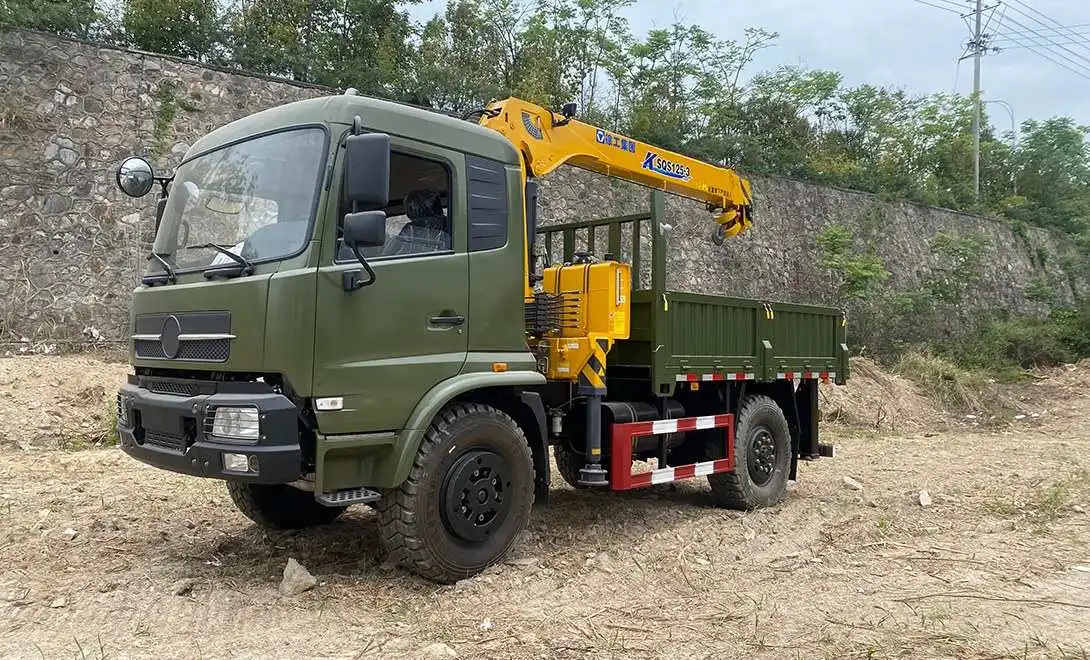

A 4x4 truck-mounted crane is a versatile piece of equipment that combines the off-road capabilities of a four-wheel-drive vehicle with the lifting power of a crane. This combination allows for enhanced mobility and operation in challenging terrains where traditional cranes might struggle. The system typically consists of a 4x4 truck chassis, a crane superstructure, outriggers for stability, and various control systems.

Components of a 4x4 Truck-Mounted Crane

The main components of a 4x4 truck-mounted crane include:

• 4x4 Truck Chassis: Provides the base and mobility for the crane system
• Crane Superstructure: The actual lifting mechanism, including the boom and hydraulic systems
• Outriggers: Extendable supports that provide stability during lifting operations
• Power Take-Off (PTO): Transfers power from the truck's engine to operate the crane
• Control Systems: Allow the operator to manage crane functions and monitor safety parameters

The integration of these components requires highly precise engineering to guarantee both optimal performance and maximum safety under demanding conditions. The 4x4 truck chassis must be designed to handle not only the static weight of the mounted crane but also the dynamic forces generated during lifting, swinging, and transportation operations.

Engineers perform detailed structural analyses to reinforce critical areas of the chassis, ensuring it can endure high stress and torsional loads without deformation. Additionally, maintaining the vehicle’s off-road capabilities is essential, requiring careful balancing of weight distribution, suspension tuning, and drivetrain configuration. This combination ensures stable operation and long-term durability in diverse industrial environments.

Advantages of 4x4 Truck-Mounted Cranes

4x4 truck-mounted cranes offer several advantages over traditional cranes:

• Improved Mobility: Can access remote or difficult-to-reach areas
• Versatility: Suitable for a wide range of applications and industries
• Compact Design: More maneuverable in tight spaces compared to larger cranes
• Cost-Effective: Combines transportation and lifting capabilities in one unit
• Quick Setup: Requires less time to deploy compared to traditional cranes

These advantages make 4x4 truck-mounted cranes particularly valuable across a wide range of industries, including construction, telecommunications, utilities, and emergency response operations. In the construction sector, they are ideal for tasks such as lifting steel structures, moving heavy materials, and supporting site installations in areas with limited accessibility.

In telecommunications and power utilities, they enable the installation and maintenance of poles, towers, and overhead lines in rugged or remote locations. For emergency services, their mobility allows for rapid deployment in disaster relief or rescue missions. The combination of high lifting capacity and reliable off-road performance ensures these cranes deliver unmatched versatility and operational efficiency.

Technical Considerations for Mounting a Crane on a 4x4 Truck

Mounting a crane on a 4x4 truck chassis involves several technical considerations to ensure safe and efficient operation. These factors are crucial for determining the feasibility and proper implementation of the crane system.

Payload Capacity and Weight Distribution

The payload capacity of a 4x4 truck plays a decisive role in determining its suitability for crane installation and operation. It dictates not only how much the vehicle can safely carry but also how effectively it can perform lifting tasks without compromising structural integrity or stability. The total combined weight of the crane superstructure, its hydraulic components, mounting frame, and the maximum anticipated load must remain within the truck’s Gross Vehicle Weight Rating (GVWR).

Engineers conduct detailed analyses of axle loads, suspension dynamics, and center-of-gravity positioning to achieve proper balance. Uneven weight distribution can lead to instability, reduced traction, and premature wear of mechanical components, so maintaining equilibrium is crucial for safe and efficient operation across all terrains.

Chassis Reinforcement and Modification

Mounting a crane often requires reinforcing the truck's chassis to handle the additional stress and load. This may involve:

• Adding support beams or gussets to strengthen the frame
• Reinforcing mounting points for the crane and outriggers
• Modifying the suspension system to accommodate the increased weight
• Upgrading the braking system to ensure adequate stopping power

These modifications to the 4x4 truck-mounted crane must be carefully engineered to maintain the truck's structural integrity and ensure safe operation under all conditions. Engineers must consider factors such as frame reinforcement, load distribution, and center of gravity adjustments to accommodate the added weight and stress from the crane installation.

In addition, all design changes must comply with relevant safety regulations and industry standards, ensuring the vehicle remains stable and reliable during lifting operations and while traveling off-road. Proper testing and certification further validate that the 4x4 truck-mounted crane meets both performance and safety requirements.

Stability and Outrigger System

Stability is paramount when operating a crane, especially on uneven terrain. The outrigger system plays a crucial role in providing a stable base for lifting operations. Considerations for the outrigger system include:

• Outrigger spread and ground pressure distribution
• Integration with the truck's frame and hydraulic systems
• Design for quick deployment and retraction
• Compatibility with various ground conditions

The outrigger system must be engineered to deliver maximum stability during lifting operations while preserving the vehicle’s off-road mobility when retracted. This balance is achieved through the use of lightweight, high-strength materials and compact hydraulic mechanisms that can be easily deployed and stowed.

Adjustable extension arms allow operators to adapt the support footprint based on terrain conditions, ensuring a secure base even on uneven ground. When not in use, the outriggers are neatly folded to maintain ground clearance, minimizing interference with the truck’s maneuverability on rugged or confined job sites.

Operational Considerations and Safety Measures

Operating a 4x4 truck-mounted crane requires adherence to strict safety protocols and operational considerations to ensure the safety of the operator, nearby personnel, and the equipment itself.

Operator Training and Certification

Operators of 4x4 truck-mounted cranes must undergo specialized training and certification. This training typically covers:

• Crane operation and control systems
• Load calculation and lifting techniques
• Safety procedures and emergency protocols
• Off-road driving skills specific to crane-mounted vehicles
• Equipment maintenance and pre-operation checks

Proper training ensures that operators can safely navigate challenging terrains while effectively utilizing the crane's capabilities.

Load Management and Lifting Capacity

Understanding and adhering to the crane's load chart is crucial for safe operation. Factors that affect lifting capacity include:

• Boom length and angle
• Outrigger extension and ground conditions
• Wind speed and other environmental factors
• Dynamic loads and load swing

Operators must constantly assess these factors and adjust their lifting plans accordingly to prevent overloading and potential accidents.

Maintenance and Inspection Protocols

Regular maintenance and inspections are essential for ensuring the longevity and safe operation of 4x4 truck-mounted cranes. This includes:

• Daily pre-operation checks of all systems
• Scheduled maintenance of the crane and truck components
• Periodic inspections by certified technicians
• Testing and certification of safety systems and load-bearing components

Adhering to a strict maintenance schedule is essential for preventing equipment failure and ensuring long-term reliability. Regular inspections of the crane, hydraulic system, and chassis components help identify wear, leaks, or structural issues before they escalate into costly breakdowns. Following manufacturer-recommended service intervals not only enhances operational efficiency but also ensures compliance with industry safety regulations. Proper documentation of maintenance activities further supports regulatory audits and promotes accountability, helping operators maintain optimal performance and extend the overall lifespan of both the crane and the 4x4 truck chassis.

Conclusion

Mounting a crane on a 4x4 truck chassis is a complex but achievable engineering task that offers significant benefits in terms of mobility and versatility. By carefully considering factors such as payload capacity, chassis reinforcement, stability, and safety measures, it is possible to create a highly effective 4x4 truck-mounted crane system. These specialized vehicles play a crucial role in various industries, enabling lifting operations in challenging environments where traditional cranes cannot operate. As technology advances, we can expect to see further innovations in 4x4 truck-mounted crane designs, improving their efficiency, safety, and capabilities.

FAQ

What is the typical lifting capacity of a 4x4 truck-mounted crane?

Lifting capacities vary widely depending on the truck size and crane model, ranging from 1 to 50 tons or more.

Are 4x4 truck-mounted cranes suitable for all types of terrain?

While designed for off-road use, extreme terrain may still pose challenges. Always assess site conditions before operation.

How often should a 4x4 truck-mounted crane be inspected?

Daily pre-operation checks are essential, with more thorough inspections typically conducted monthly and annually by certified technicians.
