The Complete Specification Checklist for Heavy Duty Truck Chassis

The Complete Specification Checklist for Heavy Duty Truck Chassis encompasses a comprehensive set of parameters crucial for optimal performance and safety. This checklist includes frame specifications, axle configurations, suspension systems, powertrain details, braking systems, electrical components, and payload capacity. Additionally, it covers steering mechanisms, fuel tank specifications, wheelbase options, and chassis materials. Understanding these specifications ensures that the truck chassis meets industry standards and specific operational requirements, facilitating informed decision-making in the selection and customization of heavy-duty trucks.

Understanding the Core Components of a Heavy Duty Truck Chassis

The truck chassis serves as the backbone of any heavy-duty vehicle, providing the structural foundation upon which all other components are built. A thorough understanding of its core components is essential for anyone involved in the trucking industry, from manufacturers to fleet managers.

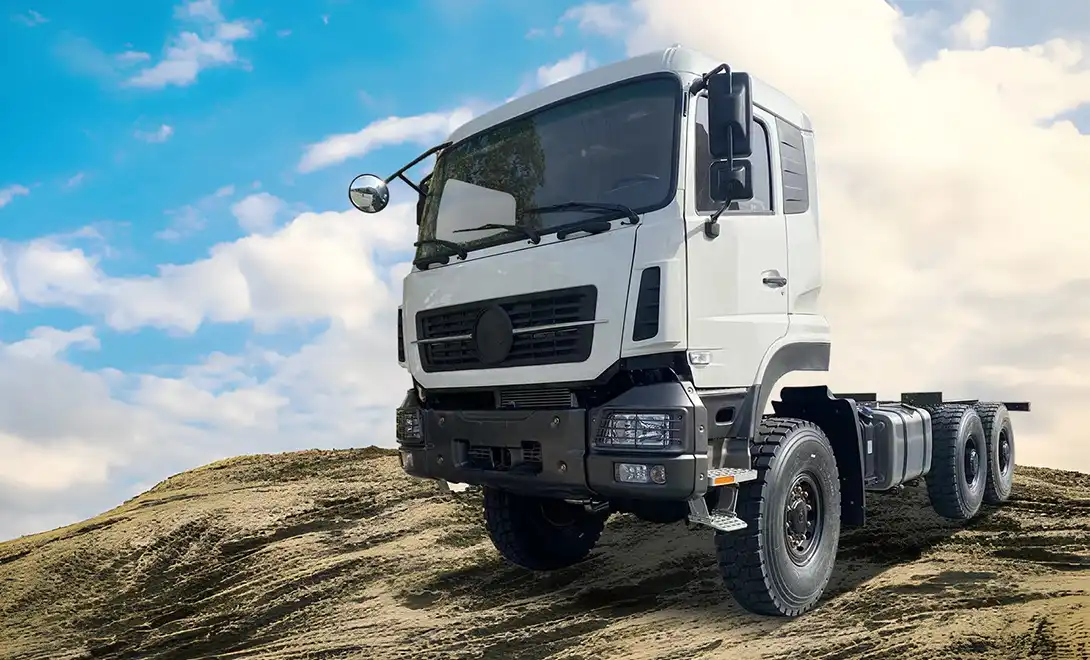

6x6 off-road truck chassis

Frame and Structure

The frame serves as the backbone and primary load-bearing component of a truck chassis, providing structural integrity for the entire vehicle. It is typically constructed from high-strength steel or similar durable materials, engineered to endure immense stresses from heavy cargo, towing, and the rigors of challenging road or off-road conditions. An effective frame design carefully balances strength, weight, and flexibility, ensuring that it can absorb shocks, resist twisting, and maintain alignment under dynamic loads. Additionally, the frame must accommodate mounting points for suspension systems, axles, and auxiliary equipment, making it a critical element for overall performance, safety, and long-term durability.

Key specifications for the frame include:

Material composition (e.g., high-tensile steel alloys)
Frame rail dimensions and thickness
Cross-member placement and design
Reinforcement options for high-stress areas

Axle Configuration

The axle configuration is a key factor in defining a truck’s load-carrying capacity, traction, and overall maneuverability. Different setups, such as a single drive axle, tandem drive axles, or tridem arrangements, are chosen based on the vehicle’s intended application and the weight it must support. Each configuration affects weight distribution, turning radius, and off-road performance. For heavy-duty or specialized trucks, carefully selecting the appropriate axle layout is crucial. It ensures vehicle stability, optimizes weight distribution, maximizes payload efficiency, and supports reliable operation under the most demanding terrains and load conditions.

Important axle specifications include:

Number and type of axles (steer, drive, tag, pusher)
Axle weight ratings
Gear ratios
Differential types (e.g., locking, limited-slip)

Suspension Systems

The suspension system is critical for maintaining ride comfort, vehicle handling, and load stability, especially in heavy-duty trucks carrying substantial cargo. Common configurations include air suspension, which provides adjustable ride height and superior comfort, and leaf spring suspension, known for its durability and load-bearing capacity. Choosing the right system depends on the truck’s intended use, road conditions, and cargo type, ensuring optimal performance, safety, and long-term reliability.

Key suspension specifications include:

Suspension type (air, leaf, or combination)
Spring rates and capacities
Shock absorber specifications
Stabilizer bar details

Powertrain and Performance Specifications for Heavy Duty Truck Chassis

The powertrain is the heart of any heavy-duty truck, determining its performance capabilities and efficiency. A well-specified powertrain ensures that the vehicle can handle its intended tasks while maintaining optimal fuel economy.

Engine Specifications

The engine serves as the primary source of power for a Truck Chassis, providing the necessary torque and horsepower to move substantial loads across varying terrains. Modern truck engines are designed to balance high power output with fuel efficiency and compliance with increasingly stringent emissions regulations.

Advanced technologies, such as turbocharging, common-rail fuel injection, and exhaust after-treatment systems, optimize performance while reducing environmental impact. Proper engine selection and calibration are crucial for ensuring that the truck can handle its intended workload reliably, maintain operational efficiency, and meet both regulatory standards and long-term durability requirements in demanding applications.

Critical engine specifications include:

Engine type and displacement
Horsepower and torque ratings
Fuel type and efficiency
Emissions compliance (e.g., Euro VI, EPA 2021)

Transmission Options

The transmission is essential for converting the engine’s power into usable torque and controlling how that power is delivered to the wheels. In heavy-duty trucks, various transmission types are employed based on operational requirements. Manual transmissions offer driver control and durability, while automated manual transmissions combine efficiency with easier operation, reducing driver fatigue.

Fully automatic transmissions provide smooth shifting, optimized fuel efficiency, and simplified handling, particularly in stop-and-go or challenging conditions. Selecting the appropriate transmission ensures optimal performance, fuel economy, and reliability for the truck’s intended workload and environment.

Key transmission specifications include:

Transmission type
Number of forward and reverse gears
Gear ratios and overall range
Auxiliary features (e.g., power take-off options)

Braking Systems

Effective braking is paramount for safety in heavy-duty trucks. Modern vehicles often incorporate a combination of service brakes, engine brakes, and auxiliary retarders.

Essential braking system specifications include:

Brake type (air, hydraulic, or combination)
Brake pad material and rotor specifications
Anti-lock braking system (ABS) details
Retarder or engine brake specifications

Advanced Features and Technologies in Modern Heavy Duty Truck Chassis

As the trucking industry evolves, heavy-duty truck chassis are incorporating increasingly sophisticated technologies to enhance safety, efficiency, and driver comfort.

Electronic Stability Control Systems

Electronic Stability Control (ESC) systems are now a standard safety feature on many heavy-duty trucks, playing a critical role in preventing accidents and enhancing overall vehicle control. ESC continuously monitors parameters such as wheel speed, steering angle, and lateral acceleration, detecting situations where the truck may lose traction or stability.

When a potential rollover or skidding event is identified, the system automatically applies selective braking and adjusts engine power to help maintain control. This technology is especially valuable during sharp turns, sudden maneuvers, or on slippery surfaces, significantly reducing the risk of rollovers, loss of control, and serious accidents in heavy-duty applications.

Key ESC specifications include:

Sensor types and placement
Integration with braking and steering systems
Rollover mitigation features
Customization options for different load types

Advanced Driver Assistance Systems (ADAS)

ADAS (Advanced Driver Assistance Systems) technologies are transforming safety and operational efficiency in modern trucks. These systems include features such as adaptive cruise control, which maintains a safe following distance automatically, lane departure warnings that alert drivers if the vehicle drifts from its lane, and collision mitigation systems that detect potential obstacles and apply braking or steering corrections.

By reducing human error and enhancing situational awareness, ADAS improves overall safety, decreases accident risks, and contributes to smoother, more efficient fleet operations in both urban and long-haul driving environments.

Important ADAS specifications include:

Types of ADAS features included
Sensor technologies (radar, lidar, cameras)
Integration with vehicle controls
Over-the-air update capabilities

Telematics and Connectivity

Modern truck chassis are increasingly equipped with advanced telematics systems, which allow fleet managers to monitor vehicle performance, track location, and analyze driver behavior in real time. These insights help optimize maintenance schedules, improve safety, and enhance overall operational efficiency.

Key telematics specifications include:

GPS tracking capabilities
Remote diagnostics features
Data transmission protocols
Integration with fleet management software

Conclusion

The Complete Specification Checklist for Heavy Duty Truck Chassis is an indispensable tool for anyone involved in the procurement, operation, or maintenance of heavy-duty trucks. By thoroughly understanding and evaluating each component and feature, stakeholders can ensure that their vehicles are optimally configured for their specific needs, maximizing efficiency, safety, and return on investment.

As technology continues to advance, staying informed about the latest developments in truck chassis design and specifications will be crucial for maintaining a competitive edge in the trucking industry. Whether you're a fleet manager, owner-operator, or manufacturer, a comprehensive understanding of truck chassis specifications will empower you to make informed decisions and optimize your operations.

FAQ

What is the most important factor to consider when specifying a heavy-duty truck chassis?

The most crucial factor is the intended application of the truck. This determines the required payload capacity, powertrain specifications, and specialized features needed.

How often should a heavy-duty truck chassis be inspected?

Regular inspections should be conducted at least annually, with more frequent checks for trucks operating in harsh conditions or carrying heavy loads.

Can a heavy-duty truck chassis be customized after purchase?

Yes, many aspects of a truck chassis can be customized post-purchase, but major modifications may affect warranty coverage and regulatory compliance.
