Designing a 4x4 Truck-Mounted Crane System: Key Considerations

Designing a 4x4 truck-mounted crane system requires careful consideration of various factors to ensure optimal performance, safety, and efficiency. Key considerations include the truck's chassis strength, crane capacity, outrigger configuration, and hydraulic system design. Engineers must also account for weight distribution, stability during operation, and compliance with local regulations. Additionally, the integration of advanced control systems and safety features is crucial for enhancing operational precision and preventing accidents. By addressing these critical aspects, designers can create a versatile and robust 4x4 truck-mounted crane system capable of handling diverse lifting tasks in challenging terrains and environments.

Chassis and Structural Considerations for 4x4 Truck-Mounted Cranes

The foundation of any effective 4x4 truck-mounted crane system lies in its chassis and structural design. A robust chassis is paramount to support the crane's weight and the loads it will lift. Engineers must carefully analyze the stress distribution across the truck frame to prevent warping or failure during operation. High-strength steel alloys are often employed to enhance the chassis's durability while minimizing overall weight.

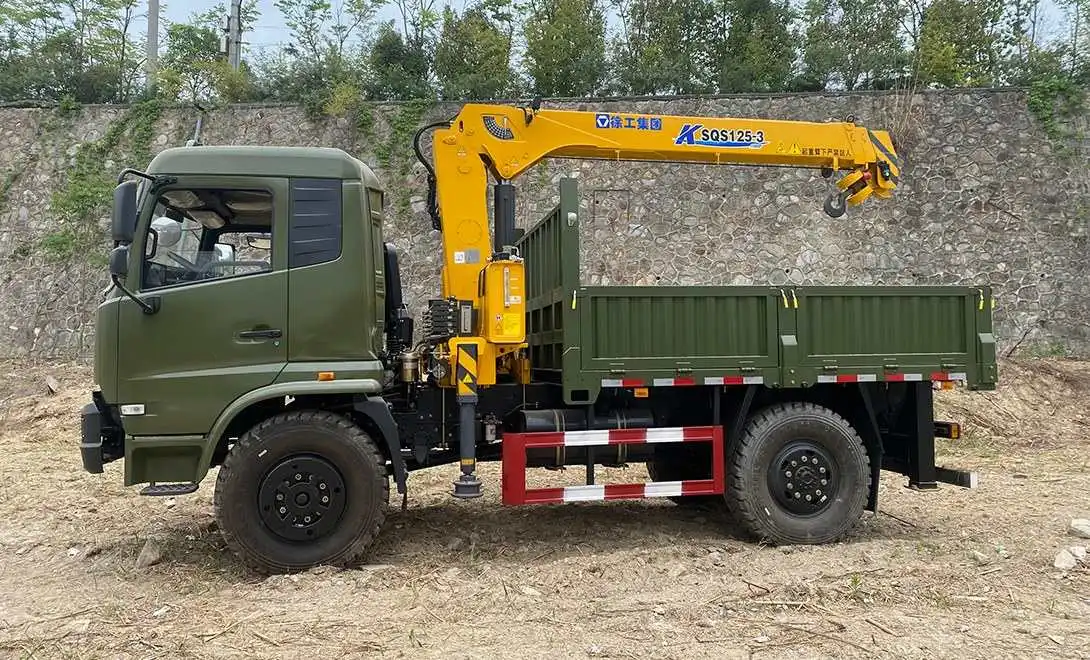

4x4 crane carrier

When selecting a 4x4 truck for crane mounting, considerations extend beyond mere load capacity. The vehicle's off-road capabilities, including ground clearance, approach and departure angles, and suspension system, play crucial roles in determining its effectiveness in various terrains. A well-designed 4x4 system ensures the crane can access remote or challenging locations, expanding its utility in construction, mining, and forestry applications.

Outrigger Configuration and Stability

Outriggers are critical components that ensure stability and safety during crane operations, especially for 4x4 truck-mounted cranes. Their design must provide a sufficiently wide support base to counterbalance lifting forces while still allowing the truck to retain mobility for off-road and confined-area operations.

Hydraulically extendable outriggers give operators the flexibility to adjust the stabilization footprint according to load weight, boom reach, and terrain conditions. Proper deployment of outriggers is critical for maintaining stability and safety during crane operations. Fully extended and correctly positioned outriggers prevent tipping by widening the support footprint, ensuring that lifting forces are effectively counterbalanced. They also help distribute stresses evenly across the truck chassis, reducing strain on structural components and minimizing the risk of damage or fatigue over time.

This reliable stabilization is essential in construction, industrial, and utility applications, where precise positioning, safe lifting, and consistent performance are required. Correct outrigger use ensures both operator safety and long-term equipment durability in demanding work environments.

Modern 4x4 truck-mounted cranes often feature advanced outrigger systems equipped with sensors and automatic leveling technologies. These systems continuously monitor ground conditions, load distribution, and pressure exerted on each outrigger, making real-time adjustments to maintain optimal stability. By automatically compensating for uneven terrain or shifting loads, intelligent outrigger systems significantly reduce the risk of tip-over accidents and enhance operator confidence.

Additionally, these technologies improve operational efficiency by enabling faster setup and more precise lifting operations. Integrating such advanced stabilization mechanisms ensures that cranes can perform safely and accurately in challenging environments, including off-road sites and congested urban construction zones.

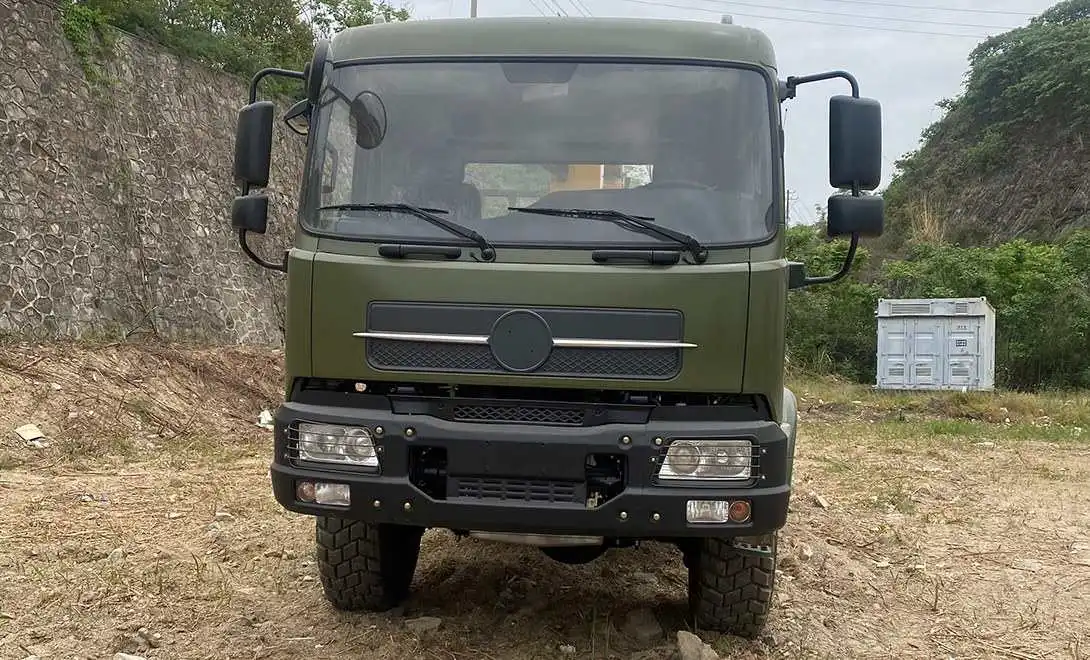

Off-road cargo crane truck

Crane Capacity and Performance Optimization

Selecting the appropriate crane capacity for a 4x4 truck-mounted system involves a delicate balance between lifting power and vehicle mobility. Overspecifying the crane can lead to excessive weight and reduced off-road performance, while underspecifying may limit the system's utility. Engineers must conduct thorough load analysis, considering not only the maximum lift capacity but also the working radius and boom configuration options.

Modern 4x4 truck-mounted cranes often feature telescopic booms, which offer a combination of reach and compactness. The boom design must account for the stress distribution during extension and retraction, ensuring smooth operation and longevity. Advanced materials such as high-strength steel or composite materials can be employed to reduce boom weight without compromising structural integrity.

Hydraulic System Optimization

The hydraulic system serves as the lifeblood of any crane operation, delivering the power needed to move the boom, operate winches, and control lifting motions. In 4x4 truck-mounted crane configurations, the hydraulic system demands careful engineering to ensure reliable performance under varying loads and off-road conditions.

Designers must evaluate power take-off (PTO) options from the truck’s engine and transmission to efficiently drive hydraulic pumps without compromising vehicle drivability. Advanced technologies such as variable displacement pumps and load-sensing systems optimize fluid flow based on demand, improving fuel efficiency, reducing component wear, and ensuring smooth, precise operation during heavy-duty lifting tasks.

Hydraulic oil cooling is another critical aspect, especially for cranes operating in hot climates or under heavy duty cycles. Adequate cooling capacity ensures consistent performance and extends the lifespan of hydraulic components. Some advanced systems incorporate regenerative hydraulics, which capture and reuse energy from lowering loads, further enhancing efficiency and reducing fuel consumption.

Safety Features and Control Systems for 4x4 Truck-Mounted Cranes

Safety is paramount in crane operations, and 4x4 truck-mounted systems present unique challenges due to their mobility and varied operating environments. Load moment indicators (LMI) are essential safety devices that continuously monitor the crane's lift capacity relative to its current configuration and boom position. These systems can automatically restrict operation when approaching the crane's limits, preventing overloading and potential accidents.

Anti-two-block systems prevent the hoist block from contacting the boom tip, a common cause of cable failure and dropped loads. For 4x4 truck-mounted cranes operating in remote areas, this feature is particularly crucial as it helps prevent accidents that could be catastrophic in locations far from immediate assistance.

Advanced Control and Telematics

Modern 4x4 truck-mounted cranes are equipped with sophisticated control systems designed to enhance precision, safety, and operator comfort. Ergonomically designed joysticks allow operators to manipulate the boom, winches, and outriggers with minimal effort, reducing fatigue during long shifts. Many systems also incorporate haptic feedback technology, which provides tactile cues about the load’s weight, tension, and movement, enabling the operator to respond instinctively to changing conditions.

These features improve lifting accuracy and reduce the risk of accidents or material damage. Additionally, advanced control interfaces often include digital displays, programmable presets, and safety interlocks, further enhancing operational efficiency and ensuring that complex lifts can be executed reliably even in challenging environments.

Telematics systems are increasingly incorporated into modern 4x4 truck-mounted cranes to provide real-time monitoring and data-driven management. These systems track key parameters such as crane usage, operational hours, fuel consumption, maintenance requirements, and overall performance metrics. For fleet managers overseeing multiple cranes across diverse sites, telematics offer valuable insights into equipment utilization, identifying underused units or scheduling preventive maintenance before failures occur.

Remote monitoring capabilities allow operators and managers to analyze performance trends, optimize lift scheduling, and improve operational efficiency. By reducing unexpected downtime and enabling proactive maintenance, integrated telematics systems enhance fleet reliability, lower operational costs, and contribute to safer, more productive crane operations.

Conclusion

Designing a 4x4 truck-mounted crane system is a multifaceted challenge that requires a holistic approach. By carefully considering the chassis structure, crane capacity, hydraulic systems, and safety features, engineers can create highly capable and versatile lifting solutions. The integration of advanced technologies, from intelligent outrigger systems to sophisticated control interfaces, continues to push the boundaries of what these mobile cranes can achieve. As industries demand more flexible and efficient lifting solutions for challenging environments, the evolution of 4x4 truck-mounted crane systems will undoubtedly continue, driven by innovation and a relentless focus on performance and safety.

FAQ

What are the main advantages of a 4x4 truck-mounted crane system?

4x4 truck-mounted cranes offer excellent mobility in off-road conditions, combining lifting capabilities with the ability to access remote or challenging locations. They provide versatility for various industries including construction, mining, and forestry.

How does the outrigger system affect crane stability?

Outriggers are crucial for stability during lifting operations. They distribute the load over a wider area, preventing tipping. Advanced systems can automatically adjust to uneven terrain, enhancing safety and operational efficiency.

What safety features are essential in 4x4 truck-mounted cranes?

Key safety features include load moment indicators (LMI), anti-two-block systems, and telematics for remote monitoring. These systems help prevent overloading, equipment damage, and provide valuable operational data for maintenance and efficiency improvements.

Innovating 4x4 Truck-Mounted Crane Solutions - JCM

JCM leads the industry in developing cutting-edge 4x4 truck-mounted crane systems, leveraging our expertise in customized automotive solutions. Our factory specializes in integrating advanced Chinese new energy technology with robust crane designs, ensuring optimal performance in diverse environments. As a trusted manufacturer, we've successfully implemented customized solutions globally, including new energy vehicles in India and specialized buses in Thailand. For unparalleled 4x4 truck-mounted crane solutions tailored to your specific needs, contact our expert team at info@jcm-star.com.
