How to select gear ratio for 6x6 chassis?

Selecting the optimal gear ratio for a 6x6 truck chassis is a critical decision that significantly impacts vehicle performance, fuel efficiency, and overall drivability. The process involves carefully considering factors such as the vehicle intended use, terrain conditions, payload capacity, and desired speed range. To choose the ideal gear ratio, start by analyzing the engine power curve, transmission specifications, and tire size. Then, calculate the required torque at the wheels for various operating conditions. Finally, select a gear ratio that balances low-speed pulling power with high-speed cruising efficiency, ensuring the engine operates within its optimal RPM range across different driving scenarios.

Understanding 6x6 Truck Chassis and Gear Ratios

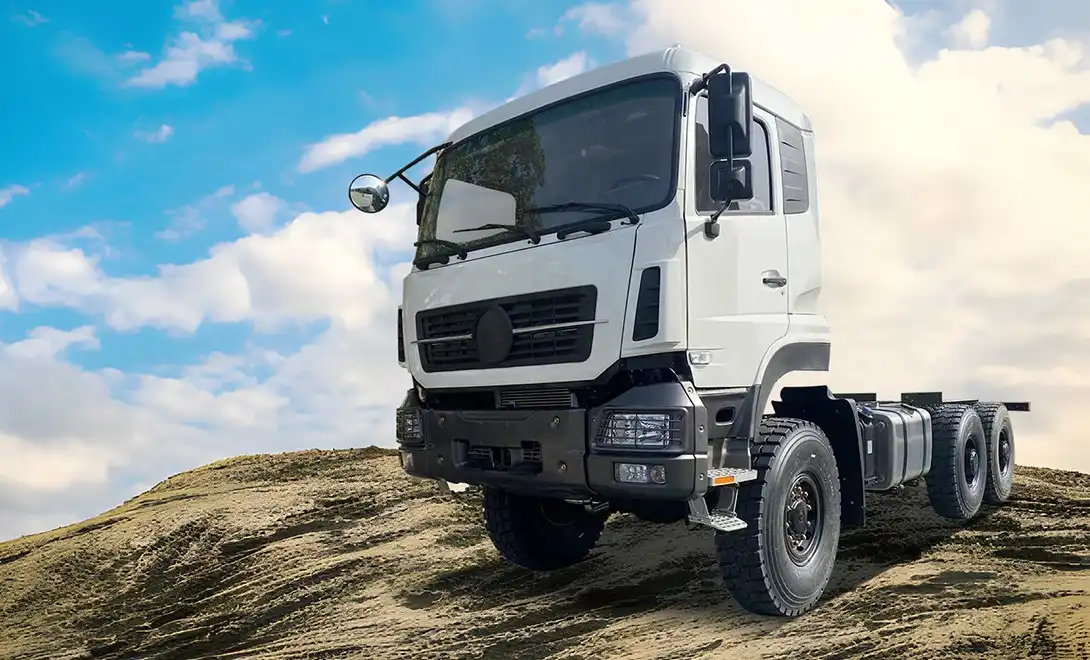

A 6x6 truck chassis is a robust platform designed for heavy-duty applications, featuring six wheels with all of them being driven. This configuration provides exceptional traction and load-bearing capabilities, making it ideal for off-road, military, and specialized industrial uses. The gear ratio, a crucial component in the drivetrain, determines how the engine's power is transmitted to the wheels.

The Importance of Gear Ratios in 6x6 Trucks

Gear ratios play a pivotal role in a 6x6 truck performance. They affect the vehicle acceleration, top speed, climbing ability, and fuel consumption. A lower gear ratio (numerically higher) provides more torque multiplication, beneficial for heavy loads and steep inclines. Conversely, a higher gear ratio (numerically lower) allows for higher top speeds and improved fuel economy during highway cruising.

Factors Influencing Gear Ratio Selection

Several factors must be considered when selecting the appropriate gear ratio for a 6x6 truck chassis:

- Engine characteristics (power and torque curves)

- Transmission type and number of gears

- Tire size and rolling resistance

- Vehicle weight and payload capacity

- Intended operating conditions (terrain, climate, altitude)

- Maximum speed requirements

- Fuel efficiency goals

Calculating the Optimal Gear Ratio

Determining the ideal gear ratio for a 6x6 truck chassis involves a series of calculations and considerations. This process ensures that the vehicle can perform efficiently across various operating conditions while meeting specific performance requirements.

Step-by-Step Calculation Process

1. Determine the engine power band and peak torque RPM.

2. Identify the desired maximum speed and typical cruising speed.

3. Calculate the tire revolutions per mile based on tire size.

4. Estimate the required wheel torque for different scenarios (e.g., hill climbing, acceleration).

5. Consider the transmission gear ratios and final drive options.

6. Use the formula: Gear Ratio = (Engine RPM x Tire Circumference) / (Vehicle Speed x 336)

7. Adjust calculations based on drivetrain efficiency and power losses.

Balancing Performance and Efficiency

The goal is to find a gear ratio that allows the engine to operate within its most efficient RPM range during typical driving conditions while providing sufficient low-end torque for challenging situations. This balance ensures optimal fuel economy without sacrificing performance when needed.

Fine-Tuning Gear Ratios for Specific Applications

Different applications of 6x6 truck chassis may require specialized gear ratio configurations to meet unique operational demands. Fine-tuning the gear ratios can significantly enhance the vehicle's capabilities in specific environments or tasks.

Off-Road and Military Applications

For off-road and military use, 6x6 trucks often require lower gear ratios to provide maximum torque for navigating difficult terrain, climbing steep gradients, and carrying heavy loads. In these applications, consider:

- Implementing multi-speed transfer cases for additional low-range gearing

- Utilizing locking differentials to maximize traction

- Selecting gear ratios that maintain engine speed in the peak torque range during low-speed maneuvers

Long-Haul Transportation

For 6x6 trucks used in long-distance transportation, higher gear ratios may be more appropriate to achieve better fuel efficiency and higher cruising speeds. Consider:

- Choosing a gear ratio that allows the engine to operate at its most efficient RPM at highway speeds

- Implementing overdrive gears in the transmission for reduced engine speed during cruising

- Balancing the gear ratio with the vehicle aerodynamics and payload capacity

Specialized Industrial Applications

Some 6x6 trucks are designed for specific industrial tasks, such as mining or oilfield operations. In these cases, gear ratio selection should focus on:

- Matching the gear ratio to the typical operating speed of the equipment

- Ensuring sufficient torque for moving heavy loads at low speeds

- Considering the impact of gear ratios on auxiliary power take-off (PTO) systems

Conclusion

Selecting the appropriate gear ratio for a 6x6 truck chassis is a complex process that requires careful consideration of various factors. By understanding the vehicle's intended use, analyzing performance requirements, and calculating the optimal gear ratio, operators can ensure their 6x6 trucks perform efficiently and effectively across a wide range of conditions. Regular evaluation and adjustment of gear ratios may be necessary as operational requirements evolve or as advancements in drivetrain technology become available.

FAQ

Q: Can I change the gear ratio on my existing 6x6 truck chassis?

A: Yes, it's possible to change the gear ratio, but it often requires replacing the differential gears or entire axle assemblies. This can be a complex and costly process.

Q: How does tire size affect gear ratio selection?

A: Larger tires effectively increase the final drive ratio, requiring a lower (numerically higher) gear ratio to maintain the same performance characteristics.

Q: What's the impact of choosing the wrong gear ratio?

A: An incorrect gear ratio can lead to poor acceleration, reduced fuel efficiency, increased wear on drivetrain components, and potentially inadequate performance in critical situations.
