Choosing Gear Ratios for 6x6 Chassis in Low-Speed Off-Road Use

When it comes to selecting gear ratios for a 6x6 truck chassis in low-speed off-road applications, several factors come into play. The optimal gear ratio depends on the vehicle's weight, intended use, terrain conditions, and desired performance characteristics. Generally, for low-speed off-road use, lower gear ratios (higher numerical values) are preferred. These ratios provide increased torque multiplication, allowing the vehicle to navigate challenging terrains with greater ease. Typical gear ratios for such applications range from 4.88:1 to 6.50:1, depending on tire size and engine power. It's crucial to balance low-end torque with acceptable high-speed performance to ensure versatility in various operating conditions.

Introducing 6x6 Truck Chassis and Gear Ratios

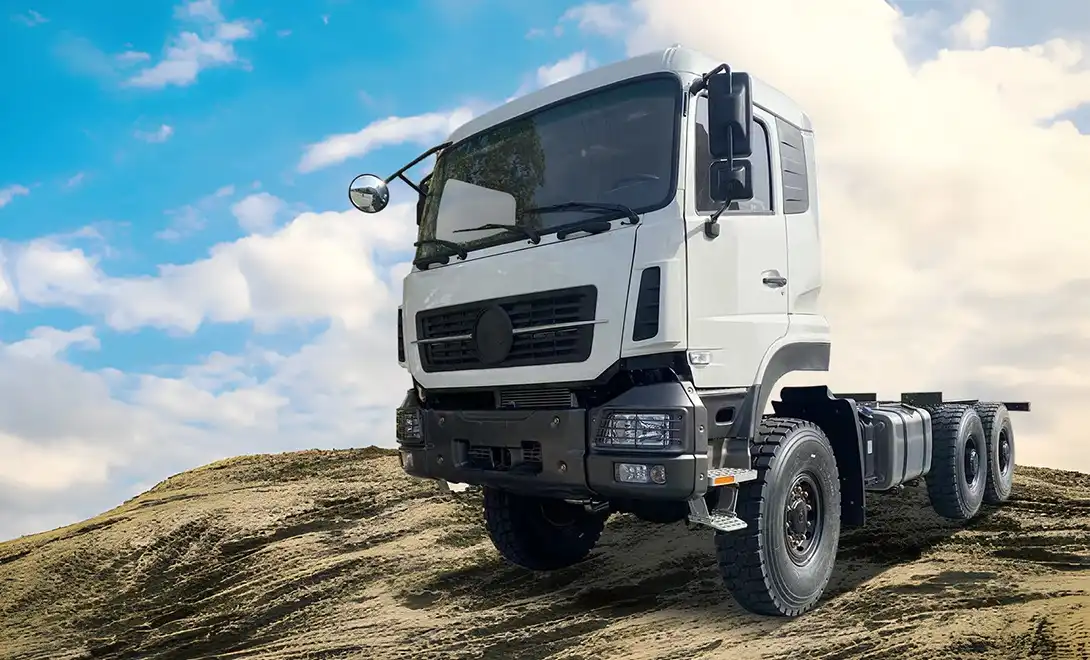

A 6x6 truck chassis is a robust platform designed for extreme off-road conditions. These vehicles feature six wheels, all of which are driven, providing exceptional traction and stability in challenging terrains. The gear ratio plays a pivotal role in determining how the engine's power is translated to the wheels, affecting the vehicle's performance characteristics.

What is a Gear Ratio?

A gear ratio represents the relationship between the number of teeth on the drive gear (pinion) and the driven gear (ring gear) in the differential. For example, a 4.88:1 ratio means the drive shaft must rotate 4.88 times for the axle to make one complete revolution. Lower ratios (higher numbers) provide more torque multiplication but reduce top speed, while higher ratios (lower numbers) offer less torque but allow for higher speeds.

Importance of Gear Ratios in Off-Road Performance

In low-speed off-road applications, the right gear ratio can make a significant difference in a vehicle's capabilities. Proper gearing enables the 6x6 truck chassis to:

- Navigate steep inclines with ease

- Overcome obstacles without losing momentum

- Maintain control during descents

- Provide optimal engine braking

- Reduce strain on the drivetrain components

Factors Influencing Gear Ratio Selection for 6x6 Chassis

Choosing the ideal gear ratio for a 6x6 truck chassis involves considering several key factors:

Vehicle Weight and Payload

Heavier vehicles require lower gear ratios to provide the necessary torque for movement, especially in challenging off-road conditions. The intended payload capacity should also be factored into the equation, as it affects the overall weight the drivetrain must move.

Tire Size

Larger tires effectively increase the final drive ratio, requiring a compensatory lower gear ratio to maintain optimal performance. It's crucial to consider the relationship between tire size and gear ratio to achieve the desired balance of torque and speed.

Engine Power and Torque Characteristics

The power output and torque curve of the engine play a significant role in determining the appropriate gear ratio. Engines with higher low-end torque may allow for slightly higher gear ratios, while those with peak power at higher RPMs might benefit from lower ratios.

Terrain and Operating Conditions

The specific off-road conditions the 6x6 truck chassis will encounter should heavily influence gear ratio selection. Extremely rugged terrain with steep climbs and deep mud may require very low gear ratios, while less severe conditions might allow for slightly higher ratios.

Optimal Gear Ratios for Low-Speed Off-Road Use

While the ideal gear ratio can vary based on the factors mentioned above, there are some general guidelines for selecting gear ratios for 6x6 truck chassis in low-speed off-road applications:

Recommended Gear Ratio Ranges

For most low-speed off-road uses, gear ratios between 4.88:1 and 6.50:1 are common. Here's a breakdown of typical applications: - 4.88:1 to 5.38:1: Suitable for moderate off-road use with a balance of low-speed capability and reasonable on-road performance - 5.38:1 to 5.89:1: Ideal for more challenging terrains and heavier vehicles - 5.89:1 to 6.50:1: Reserved for extreme off-road applications and very heavy vehicles

Balancing Low-Speed Performance with Versatility

While extremely low gear ratios provide excellent low-speed torque, they can limit the vehicle's versatility. It's essential to consider the full range of operating conditions the 6x6 truck chassis might encounter. A balanced approach often involves selecting a gear ratio that provides adequate low-speed performance without overly compromising high-speed capability.

Differential Lockers and Gear Ratios

Many 6x6 truck chassis feature differential lockers, which can affect gear ratio selection. Lockers provide additional traction by forcing both wheels on an axle to rotate at the same speed. With lockers engaged, slightly higher gear ratios may be acceptable, as the improved traction can compensate for the reduced torque multiplication.

Conclusion

Selecting the right gear ratio for a 6x6 truck chassis in low-speed off-road applications is a critical decision that impacts the vehicle's performance, capability, and longevity. By carefully considering factors such as vehicle weight, tire size, engine characteristics, and intended use, operators can optimize their vehicles for the challenges they'll face. While lower gear ratios generally provide better low-speed performance, it's crucial to balance this with the need for versatility across various operating conditions. Consulting with drivetrain specialists and conducting thorough testing can help ensure the chosen gear ratio meets the specific requirements of the application.

FAQ

Q: Can I change the gear ratio on my existing 6x6 truck chassis?

A: Yes, it's possible to change the gear ratio, but it typically involves replacing the ring and pinion gears in the differentials. This can be a complex process and may require additional modifications.

Q: How does changing the gear ratio affect fuel economy?

A: Lower gear ratios (higher numerical values) generally result in higher engine RPMs at a given speed, which can increase fuel consumption. However, in off-road applications, the improved low-speed performance often outweighs fuel economy concerns.

Q: Are there any downsides to very low gear ratios?

A: While low gear ratios provide excellent low-speed torque, they can limit top speed and may cause the engine to operate at higher RPMs during highway driving, potentially increasing wear and fuel consumption.

Customized 6x6 Truck Chassis Solutions for Off-Road Applications - JCM

JCM specializes in designing and manufacturing customized 6x6 truck chassis solutions tailored for specific off-road applications. Our expertise in gear ratio optimization ensures optimal performance in challenging terrains. With successful projects like autonomous vehicles in Singapore and custom buses in Malaysia, JCM demonstrates its capability to deliver innovative, market-specific solutions. As a leading manufacturer and factory, we offer comprehensive support from design to production. For inquiries about our 6x6 truck chassis or other customized automotive solutions, contact us at info@jcm-star.com.
