Can you mount a crane on a 4x4 truck chassis?

This combination, known as a 4x4 truck-mounted crane, offers a versatile and robust solution for various industries requiring heavy lifting capabilities in challenging terrains. The 4x4 chassis provides excellent off-road performance, while the crane offers powerful lifting and reach capabilities. This setup is particularly useful in construction, utilities, mining, and forestry sectors where access to remote or rugged locations is essential. However, it's crucial to consider factors such as weight distribution, stability, and legal requirements when mounting a crane on a 4x4 truck chassis to ensure safe and efficient operation.

Comprehending 4x4 Truck-Mounted Cranes: Features and Applications

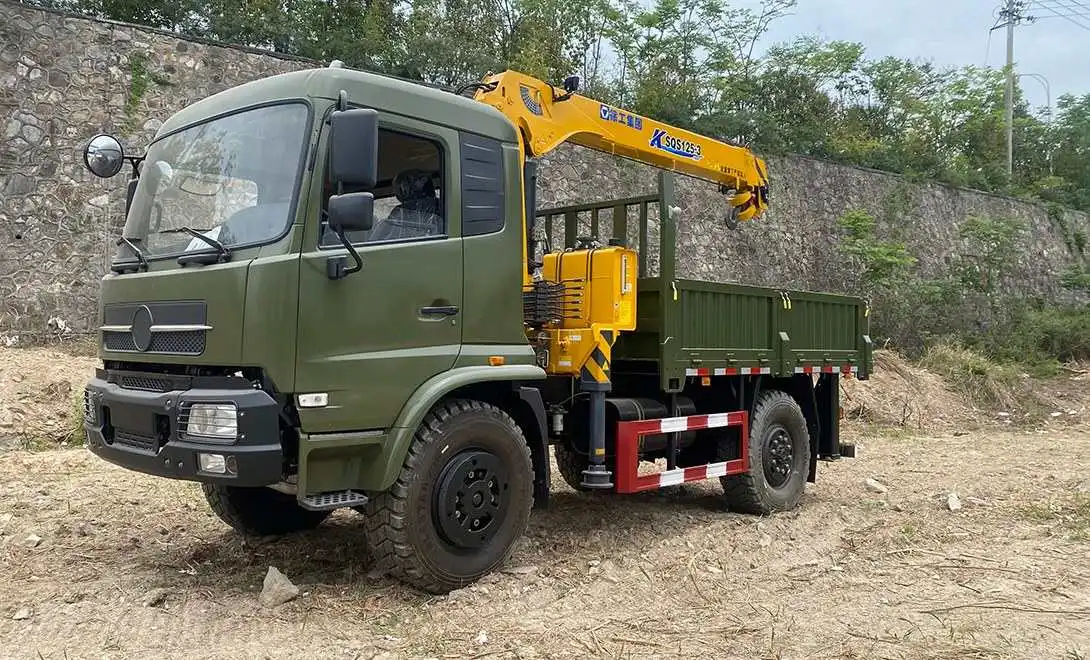

4x4 truck-mounted cranes are an amalgamation of two powerful machines: a four-wheel-drive truck and a hydraulic crane. This combination results in a highly versatile vehicle capable of navigating difficult terrains while performing heavy lifting tasks. The 4x4 drivetrain ensures superior traction and maneuverability in off-road conditions, making it ideal for reaching remote construction sites, power line installations, or emergency response situations.

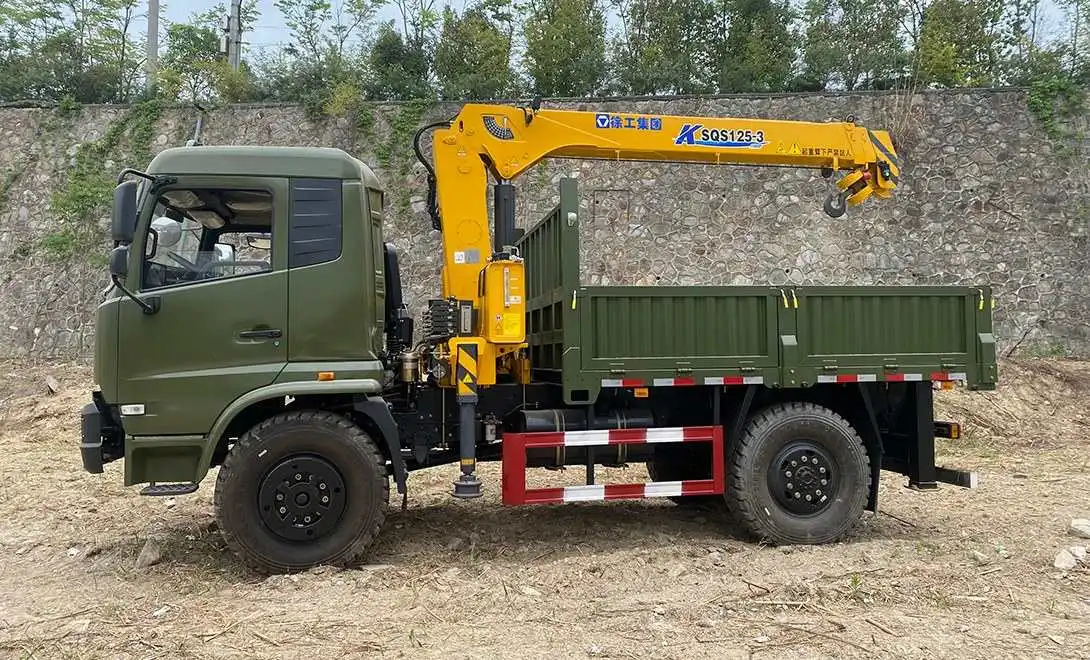

These specialized vehicles come in various configurations, with crane capacities ranging from small utility cranes to large boom trucks. The crane is typically mounted behind the cab on the truck's chassis, utilizing the vehicle's frame for stability during lifting operations. This setup allows for a compact design that can easily travel on public roads and access tight spaces on job sites.

Key Features of 4x4 Truck-Mounted Cranes

4x4 truck-mounted cranes boast several features that make them indispensable in various industries:

- All-terrain capability: The 4x4 drive system allows these vehicles to traverse rough terrain, mud, snow, and steep inclines.

- Versatility: They can serve dual purposes as both transportation vehicles and lifting equipment.

- Compact design: Despite their powerful capabilities, these vehicles maintain a relatively small footprint, allowing them to access confined spaces.

- Variable reach: Telescopic or articulated booms provide flexibility in lifting operations, allowing for precise positioning of loads.

- Stability systems: Advanced outrigger systems and computerized load moment indicators ensure safe lifting operations in various conditions.

Applications Across Industries

The versatility of 4x4 truck-mounted cranes makes them valuable assets in numerous sectors:

- Construction: For lifting and placing materials on job sites with limited access.

- Utilities: Installing and maintaining power lines, transformers, and telecommunication equipment in remote areas.

- Mining: Transporting and lifting heavy equipment and materials in quarries and open-pit mines.

- Forestry: Assisting in logging operations and forest management in hard-to-reach locations.

- Emergency services: Providing lifting capabilities for rescue operations in challenging environments.

- Oil and gas: Supporting maintenance and installation work in remote oil fields.

​​​​​​​

Technical Considerations for Mounting a Crane on a 4x4 Truck

While mounting a crane on a 4x4 truck chassis is feasible, it requires careful planning and engineering to ensure safe and efficient operation. Several technical aspects must be considered during the design and implementation process:

Weight Distribution and Chassis Strength

One of the primary considerations when mounting a crane on a 4x4 truck is the distribution of weight. The additional weight of the crane and its components must be carefully balanced to maintain the vehicle's stability and performance. This often involves reinforcing the truck's chassis to handle the increased load and stress. Engineers must calculate the gross vehicle weight rating (GVWR) and ensure that the combined weight of the truck, crane, and payload does not exceed this limit.

Hydraulic System Integration

The crane's hydraulic system must be seamlessly integrated with the truck's existing systems. This integration often requires the installation of a power take-off (PTO) unit, which allows the truck's engine to power the crane's hydraulic pump. The hydraulic system must be designed to provide sufficient power for crane operations while maintaining the truck's other hydraulic functions, such as steering and braking.

Stability and Outrigger Design

Ensuring stability during lifting operations is crucial for safety and efficiency. The design and placement of outriggers play a vital role in this aspect. Engineers must consider the truck's dimensions, the crane's lifting capacity, and the typical operating conditions to develop an effective outrigger system. Advanced stability control systems may also be incorporated to monitor and adjust the crane's performance based on real-time data.

Control Systems and Operator Interface

Modern 4x4 truck-mounted cranes often feature sophisticated control systems that integrate the crane's operations with the truck's functions. These systems may include computerized load moment indicators, remote control capabilities, and advanced safety features. The operator interface must be designed for ease of use and efficiency, allowing seamless transition between driving and crane operations.

Regulatory Compliance and Certification

Mounting a crane on a 4x4 truck chassis must comply with various regulations and standards. This includes adhering to road safety regulations for the truck and meeting specific crane safety standards. The completed vehicle often requires certification and regular inspections to ensure ongoing compliance and safety.

Advantages and Challenges of 4x4 Truck-Mounted Cranes

4x4 truck-mounted cranes offer numerous advantages in specialized applications, but they also come with unique challenges. Understanding these pros and cons is essential for businesses considering investing in these versatile machines.

Advantages

- Mobility and accessibility: The 4x4 capability allows these cranes to reach locations that would be inaccessible to traditional cranes or lifting equipment.

- Versatility: They serve dual purposes as both transportation vehicles and lifting equipment, reducing the need for multiple machines on a job site.

- Cost-effectiveness: By combining transportation and lifting capabilities, 4x4 truck-mounted cranes can offer significant cost savings in certain applications.

- Rapid deployment: These vehicles can quickly travel to job sites and set up for lifting operations, improving overall project efficiency.

- Compact footprint: Despite their powerful capabilities, 4x4 truck-mounted cranes often have a smaller footprint than traditional cranes, making them suitable for confined spaces.

Challenges

- Limited lifting capacity: Compared to dedicated crane vehicles, 4x4 truck-mounted cranes may have lower lifting capacities due to weight and stability constraints.

- Complexity: The integration of crane systems with the truck's existing systems can lead to increased complexity in maintenance and repairs.

- Operator training: Operators must be skilled in both truck driving and crane operation, requiring specialized training and certification.

- Initial cost: The upfront investment for a 4x4 truck-mounted crane can be significant, although this may be offset by long-term versatility and efficiency gains.

- Regulatory compliance: Meeting both road safety regulations and crane safety standards can be challenging and may require ongoing certification and inspections.

Balancing Performance and Safety

To maximize the benefits of 4x4 truck-mounted cranes while mitigating challenges, manufacturers and operators must focus on balancing performance with safety. This involves investing in advanced stability systems, implementing comprehensive operator training programs, and adhering to strict maintenance schedules. By doing so, businesses can harness the full potential of these versatile machines while ensuring safe and efficient operations across various challenging environments.

Conclusion

Mounting a crane on a 4x4 truck chassis is not only possible but has become an increasingly popular solution for industries requiring lifting capabilities in challenging terrains. The resulting 4x4 truck-mounted cranes offer a unique combination of mobility, versatility, and lifting power that makes them invaluable in construction, utilities, mining, and other sectors where access to remote or rugged locations is essential.

While the integration of crane systems with a 4x4 truck chassis presents technical challenges, careful engineering and adherence to safety standards can result in a highly effective and efficient machine. The advantages of these versatile vehicles often outweigh the challenges, providing businesses with a powerful tool that can navigate difficult terrain and perform heavy lifting tasks with equal proficiency.

As technology continues to advance, we can expect to see further innovations in 4x4 truck-mounted crane designs, potentially leading to increased lifting capacities, improved stability systems, and enhanced operator interfaces. These developments will likely expand the applications and effectiveness of these machines, cementing their place as essential equipment in various industries that operate in challenging environments.

FAQ

Q: What is the typical lifting capacity of a 4x4 truck-mounted crane?

A: The lifting capacity varies widely depending on the specific model and design. Smaller utility cranes might have capacities of 1-2 tons, while larger boom trucks can lift up to 50 tons or more.

Q: Are special licenses required to operate a 4x4 truck-mounted crane?

A: Yes, operators typically need both a commercial driver's license (CDL) and specific crane operator certification, such as those offered by the National Commission for the Certification of Crane Operators (NCCCO).

Q: How does the 4x4 capability affect crane performance?

A: The 4x4 system provides better traction and maneuverability in difficult terrains, allowing the crane to access remote locations. However, it may slightly reduce the overall lifting capacity compared to cranes mounted on dedicated carriers.
