Best Truck-Mounted Crane Configurations on 4x4 Base Chassis

The optimal 4x4 Truck-Mounted Crane configuration typically features a robust, all-terrain vehicle with a sturdy crane mounted on the rear, designed to provide maximum lifting capacity while maintaining off-road mobility and stability across diverse work environments. This setup combines off-road capability with lifting power, making it ideal for construction, utility, and mining applications in challenging environments. The best configurations often include a telescopic boom crane with a capacity ranging from 10 to 50 tons, hydraulic outriggers for stability, and a spacious cab for operator comfort. These versatile machines excel in mobility and performance, offering a perfect balance between maneuverability and lifting capacity for diverse job sites.

Introducing 4x4 Truck-Mounted Crane Capabilities and Applications

4x4 truck-mounted cranes are versatile machines that combine the mobility of a four-wheel-drive truck with the lifting power of a crane. These vehicles are designed to navigate challenging terrains while providing reliable lifting and material handling capabilities. The 4x4 base chassis ensures superior traction and stability, allowing the crane to operate effectively in various environments, from rugged construction sites to remote locations.

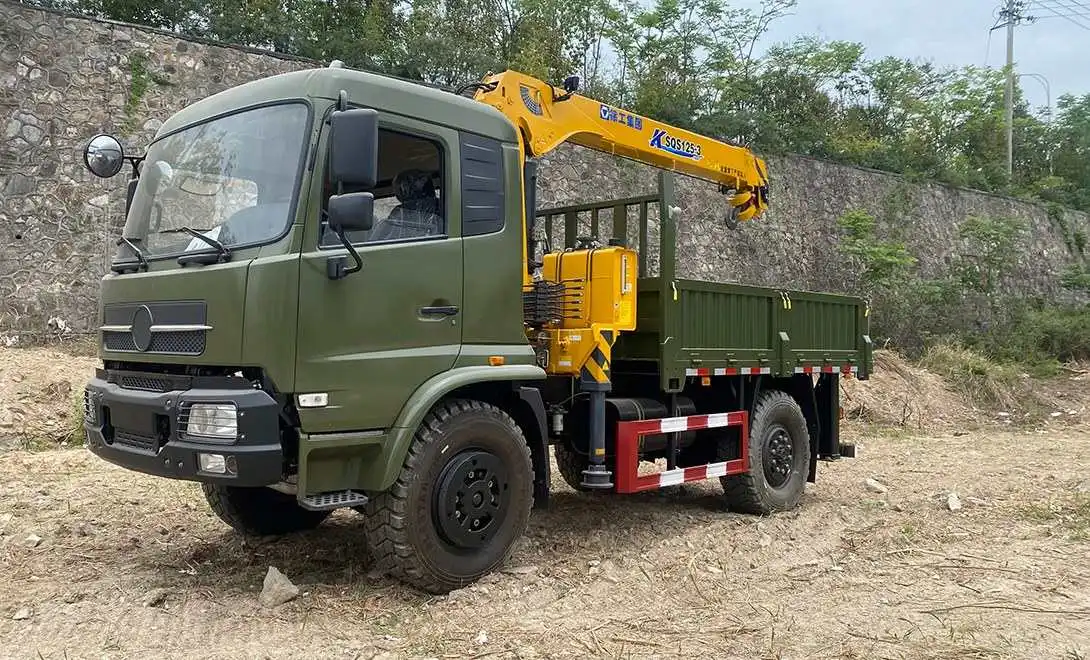

All-wheel drive crane truck

The key advantages of 4x4 truck-mounted cranes include:

Enhanced off-road capability
Increased stability on uneven surfaces
Improved maneuverability in tight spaces
Ability to access remote job sites

These 4x4 Truck-Mounted Cranes are commonly used in industries such as construction, oil and gas, mining, and utilities. They excel in a wide range of tasks, including equipment installation, material handling, and various maintenance operations, particularly in challenging environments where conventional cranes cannot operate effectively. The mobility and off-road capabilities of these vehicles allow operators to access confined spaces, uneven terrain, and remote job sites with ease.

Their versatility ensures that heavy loads can be lifted and positioned safely and efficiently, even in areas with limited maneuvering room. This makes them invaluable assets for industries requiring both precision and flexibility in demanding operational conditions, ensuring productivity and safety are maintained.

Crane Types and Their Suitability for 4x4 Trucks

Several crane types can be mounted on 4x4 truck chassis, each offering unique benefits for specific applications:

Telescopic Boom Cranes: These are the most common and versatile option. They offer a good balance of reach and lifting capacity, making them suitable for a wide range of tasks.
Knuckle Boom Cranes: Ideal for precise lifting and placement in confined spaces, these cranes are often used in urban construction and utility work.
Articulating Cranes: These provide excellent maneuverability and are particularly useful for loading and unloading tasks in tight areas.

When selecting a crane type for a 4x4 truck, it is essential to evaluate several critical factors to ensure both optimal performance and operational safety. The intended use of the crane, such as construction, utilities, or mining, will determine the required features and capabilities. Lifting capacity requirements must be carefully matched to the loads the crane will handle, taking into account both static and dynamic forces.

Additionally, the operational environment—including terrain conditions, space constraints, and exposure to harsh weather—plays a significant role in choosing the appropriate crane type. Proper consideration of these factors ensures reliable, safe, and efficient crane operations.

Key Factors in Choosing the Right 4x4 Truck-Mounted Crane Configuration

Selecting the most suitable 4x4 truck-mounted crane configuration requires a thorough analysis of several critical factors. By carefully considering these elements, businesses can ensure they invest in a machine that meets their specific operational needs and maximizes efficiency.

Lifting Capacity and Boom Length

The lifting capacity and boom length are paramount considerations when choosing a 4x4 truck-mounted crane. These factors directly impact the crane's ability to handle various loads and reach different heights. Key points to consider include:

Maximum lifting capacity at different boom extensions
Load chart analysis for various working radii
Boom length and maximum tip height
Jib options for extended reach capabilities

It's crucial to match these specifications with the typical loads and working conditions of your projects to ensure the crane can handle all required tasks efficiently and safely.

Chassis Specifications and Stability

The 4x4 base chassis plays a vital role in the overall performance and stability of the truck-mounted crane. Important aspects to evaluate include:

Gross vehicle weight rating (GVWR) and payload capacity
Axle configurations and weight distribution
Suspension system and its impact on stability
Outrigger design and deployment options

A well-designed chassis ensures the crane remains stable during lifting operations, even on challenging terrain. It's essential to choose a configuration that provides a solid foundation for the crane while maintaining the vehicle's off-road capabilities.

Operational Features and Technology Integration

Modern 4x4 truck-mounted cranes come equipped with various advanced features and technologies that enhance safety, efficiency, and ease of operation. Some key elements to look for include:

Load moment indicators and automatic overload protection systems
Telematics for remote monitoring and maintenance scheduling
Advanced control systems with intuitive interfaces
Camera systems for improved visibility and safety
Wireless remote control options for flexible operation

These technological advancements can significantly improve the crane's performance, reduce downtime, and enhance overall safety on the job site. When evaluating different configurations, consider how these features align with your operational requirements and potential future needs.

Optimizing Performance and Maintenance of 4x4 Truck-Mounted Cranes

To ensure the longevity and optimal performance of 4x4 truck-mounted cranes, implementing effective maintenance strategies and operational best practices is crucial. By focusing on these aspects, operators can maximize the efficiency and safety of their equipment while minimizing downtime and repair costs.

Preventive Maintenance Strategies

A comprehensive preventive maintenance program is essential for keeping 4x4 truck-mounted cranes in peak condition. Key elements of an effective maintenance strategy include:

Regular inspections of critical components such as hydraulic systems, wire ropes, and structural elements
Scheduled oil and filter changes to maintain hydraulic system efficiency
Lubrication of moving parts to reduce wear and extend component life
Calibration of load moment indicators and other safety systems
Tire maintenance and rotation to ensure optimal traction and stability

By adhering to a rigorous maintenance schedule, operators can identify potential issues before they escalate into major problems, thereby reducing the risk of unexpected breakdowns and costly repairs.

Operator Training and Safety Protocols

Well-trained operators are crucial for maximizing the performance and safety of 4x4 truck-mounted cranes. Comprehensive training programs should cover:

Proper operation techniques for various lifting scenarios
Understanding and interpreting load charts
Safe rigging practices and load handling procedures
Emergency response and equipment shutdown procedures
Familiarity with site-specific safety regulations and protocols

In addition to initial training, ongoing refresher courses and safety briefings help ensure that operators stay up-to-date with best practices and any new features or technologies introduced to the equipment.

Optimizing Fuel Efficiency and Reducing Environmental Impact

As environmental concerns become increasingly important, optimizing the fuel efficiency of 4x4 truck-mounted cranes is a key consideration. Strategies for improving efficiency and reducing environmental impact include:

Implementing route planning to minimize unnecessary travel
Using telematics data to identify and address inefficient operating patterns
Proper engine maintenance to ensure optimal fuel combustion
Exploring alternative fuel options or hybrid technologies where applicable
Adopting eco-friendly hydraulic fluids and lubricants

By focusing on these areas, operators can not only reduce fuel costs but also minimize the environmental footprint of their operations, potentially leading to improved compliance with environmental regulations and enhanced corporate social responsibility.

Conclusion

4x4 truck-mounted cranes represent a pinnacle of versatility and performance in the world of mobile lifting equipment. By carefully considering factors such as lifting capacity, chassis specifications, and technological features, businesses can select the optimal configuration to meet their specific operational needs. Coupled with robust maintenance practices, comprehensive operator training, and a focus on efficiency, these powerful machines can significantly enhance productivity and safety across various industries and challenging work environments.

As the demand for flexible and efficient lifting solutions continues to grow, the importance of choosing the right 4x4 truck-mounted crane configuration cannot be overstated. By leveraging the insights and considerations outlined in this article, decision-makers can make informed choices that not only meet their immediate requirements but also provide long-term value and operational benefits.

FAQ

What are the main advantages of a 4x4 truck-mounted crane over traditional cranes?

4x4 truck-mounted cranes offer superior off-road capability, increased mobility, and the ability to access remote job sites. They combine lifting power with the versatility of a four-wheel-drive vehicle.

How do I determine the right lifting capacity for my 4x4 truck-mounted crane?

Consider the heaviest loads you'll need to lift, the typical working radius, and any future project requirements. It's advisable to choose a crane with a capacity that exceeds your current needs to accommodate potential growth.

What maintenance tasks are critical for 4x4 truck-mounted cranes?

Regular inspections of hydraulic systems, wire ropes, and structural components are crucial. Additionally, scheduled oil changes, lubrication, and calibration of safety systems are essential for optimal performance and longevity.
