4x4 Electric Truck Chassis Design Guide for OEM Builders

The 4x4 Electric Truck Chassis Design Guide for OEM Builders is an essential resource for manufacturers venturing into the electric vehicle market. This comprehensive guide covers crucial aspects of chassis design, including powertrain integration, suspension systems, and battery placement. It provides invaluable insights into optimizing weight distribution, enhancing off-road capabilities, and ensuring durability. The guide also addresses thermal management, regenerative braking, and safety considerations specific to electric 4x4 trucks. By following this guide, OEM builders can create robust, efficient, and market-ready 4x4 electric truck chassis that meet the growing demand for sustainable off-road vehicles.

Key Components of a 4x4 Electric Truck Chassis

The 4x4 electric truck chassis is a complex system comprising several critical components. At its core is the electric powertrain, which includes high-performance electric motors, typically one for each axle to provide true four-wheel drive capability. These motors are powered by a robust battery pack, strategically placed to optimize weight distribution and maintain a low center of gravity.

The suspension system is another crucial element, designed to handle the additional weight of the battery pack while providing the necessary ground clearance and articulation for off-road performance. Advanced air or hydraulic suspension systems are often employed to allow for adjustable ride height and improved handling across various terrains.

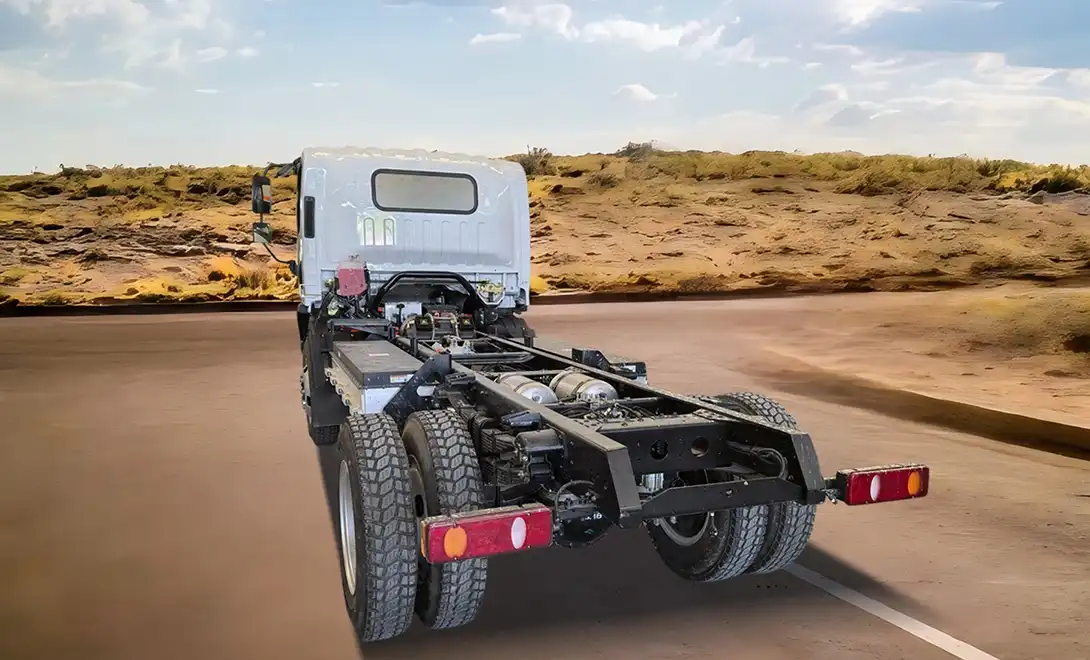

The chassis frame itself must be engineered to accommodate the unique requirements of an electric drivetrain. This includes reinforced mounting points for the battery pack and motors, as well as integrated cooling systems to manage thermal loads. The frame design must also consider the integration of power electronics, including inverters and DC-DC converters.

Electric Powertrain Integration

Integrating the electric powertrain into a 4x4 truck chassis presents unique challenges and opportunities. Unlike traditional internal combustion engines, electric motors offer instant torque and can be precisely controlled, allowing for advanced traction management systems. This characteristic is particularly beneficial for off-road applications, where torque delivery to individual wheels can be fine-tuned for optimal performance.

The placement of electric motors, either centrally or at each wheel hub, impacts the overall design and capabilities of the chassis. Hub motors can simplify the drivetrain by eliminating the need for axles and differentials, but they increase unsprung weight, which can affect ride quality and handling. Centrally mounted motors with a traditional axle setup may offer a more familiar configuration for OEMs transitioning from combustion engines to electric powertrains.

​​​​​​​

Battery Pack Integration and Placement

The battery pack is the heart of any electric vehicle, and its integration is critical in 4x4 truck chassis design. The substantial weight of the battery pack can be advantageous if properly distributed, lowering the vehicle's center of gravity and potentially improving stability. However, it also presents challenges in terms of packaging and protection.

OEM builders must consider various battery placement strategies. A common approach is to integrate the battery pack into the floor of the vehicle, creating a "skateboard" chassis design. This configuration offers excellent weight distribution and maximizes interior space. Alternatively, some designs may incorporate multiple smaller battery packs distributed throughout the chassis to balance weight and optimize space utilization.

Protection of the battery pack is paramount, especially in off-road applications. The chassis design must incorporate robust shielding to guard against impacts from rocks and other obstacles. Additionally, sealing and waterproofing measures are essential to ensure the battery's integrity during water crossings or in harsh weather conditions.

Optimizing Chassis Design for Off-Road Performance

Designing a 4x4 electric truck chassis for optimal off-road performance requires a holistic approach that balances various factors. The unique characteristics of electric powertrains offer new possibilities for enhancing off-road capabilities, but they also introduce new challenges that must be addressed in the chassis design.

One of the primary considerations is weight distribution. The significant mass of the battery pack can be leveraged to improve vehicle stability and traction. By strategically positioning the battery low and centered in the chassis, designers can achieve a lower center of gravity, which enhances handling and reduces the risk of rollover in challenging terrain.

Suspension design plays a crucial role in off-road performance. The chassis must accommodate a suspension system that provides ample wheel travel and articulation to maintain traction on uneven surfaces. Advanced air or hydraulic suspension systems can offer adjustable ride height, allowing the vehicle to adapt to different terrains. These systems can also compensate for the additional weight of the electric powertrain components.

Traction Control and Torque Vectoring

Electric motors offer precise control over torque delivery, enabling advanced traction control systems. OEM builders can implement sophisticated torque vectoring technologies that distribute power to individual wheels based on real-time traction conditions. This level of control surpasses what is possible with traditional mechanical differentials, allowing for superior off-road performance and handling.

The chassis design should incorporate sensors and electronic control units to support these advanced traction systems. Integration of wheel speed sensors, accelerometers, and gyroscopes allows the vehicle to constantly monitor its position and the available traction at each wheel, making split-second adjustments to optimize performance.

Thermal Management and Cooling Systems

Off-road driving can place significant stress on the electric powertrain, making effective thermal management crucial. The chassis design must incorporate robust cooling systems for the battery pack, electric motors, and power electronics. This may include liquid cooling circuits, heat exchangers, and strategically placed air intakes and vents.

The cooling system design should consider the diverse environments in which a 4x4 truck may operate, from scorching deserts to frigid mountain passes. OEM builders must ensure that the thermal management system can maintain optimal operating temperatures across this wide range of conditions, preserving battery life and maintaining consistent performance.

Durability and Maintenance Considerations

Durability is a paramount concern in 4x4 electric truck chassis design, particularly for vehicles intended for rigorous off-road use. The chassis must withstand not only the typical stresses of on-road driving but also the extreme conditions encountered in off-road environments. This includes impacts from rocks and debris, exposure to water and mud, and the constant vibrations associated with rough terrain.

OEM builders should employ high-strength materials and reinforced structures in critical areas of the chassis. The use of advanced alloys or composite materials can offer superior strength-to-weight ratios, enhancing durability without significantly increasing overall vehicle weight. Special attention should be given to protecting vulnerable components such as the battery pack, electric motors, and power electronics.

Sealing and waterproofing are crucial aspects of the chassis design. All electrical components, connectors, and enclosures must be adequately protected against water ingress and dust. This is particularly important for the high-voltage systems in an electric vehicle, where water intrusion could lead to serious malfunctions or safety hazards.

Modular Design for Easy Maintenance

Incorporating a modular design approach in the 4x4 electric truck chassis can significantly improve maintainability and reduce downtime. By designing key components as easily replaceable modules, OEM builders can simplify maintenance procedures and enable quick repairs, even in remote locations.

For example, the battery pack could be designed as a swappable unit, allowing for rapid replacement in the field if necessary. Similarly, electric motors and power electronics could be packaged in modular units that can be easily accessed and replaced. This approach not only facilitates maintenance but also allows for future upgrades as technology advances.

Diagnostic Systems and Predictive Maintenance

The integration of advanced diagnostic systems into the chassis design can greatly enhance the long-term durability and reliability of 4x4 electric trucks. By incorporating sensors throughout the chassis and powertrain, OEM builders can enable real-time monitoring of critical components and systems.

These diagnostic systems can provide early warning of potential issues, allowing for preventive maintenance before failures occur. Additionally, the data collected can be used to implement predictive maintenance strategies, optimizing service intervals and reducing overall maintenance costs. This is particularly valuable for fleet operators who require maximum uptime from their vehicles.

Conclusion

Designing a 4x4 electric truck chassis presents unique challenges and opportunities for OEM builders. By focusing on key aspects such as powertrain integration, off-road performance optimization, and durability considerations, manufacturers can create robust and capable vehicles that meet the demanding requirements of off-road enthusiasts and commercial users alike.

The shift towards electric powertrains in the 4x4 truck segment offers exciting possibilities for innovation in chassis design. From advanced traction control systems to modular, easily maintainable components, electric technology is enabling a new generation of off-road vehicles that promise improved performance, efficiency, and reliability.

As the automotive industry continues its transition towards electrification, the principles outlined in this guide will serve as a valuable resource for OEM builders looking to establish themselves in the growing market for electric off-road vehicles. By embracing these design considerations and leveraging the unique advantages of electric powertrains, manufacturers can create 4x4 electric trucks that not only meet but exceed the expectations of their customers.

FAQ

Q: What are the main challenges in designing a 4x4 electric truck chassis?

A: The main challenges include integrating the heavy battery pack, optimizing weight distribution, ensuring durability for off-road use, and managing thermal loads from the electric powertrain.

Q: How does the chassis design differ between electric and conventional 4x4 trucks?

A: Electric 4x4 truck chassis designs often feature a lower center of gravity due to battery placement, have more flexible powertrain configurations, and require integration of high-voltage components and cooling systems.

Q: What are the key considerations for off-road performance in an electric 4x4 truck chassis?

A: Key considerations include robust suspension design, advanced traction control systems, adequate ground clearance, and protection for critical electrical components against water and impact damage.

4x4 Electric Truck Chassis Design Guide for OEM Builders - JCM

JCM, a leading manufacturer in the automotive industry, offers comprehensive solutions for OEM builders seeking to develop 4x4 electric truck chassis. Our expertise spans from production line planning to parts supply chain management, ensuring efficient and high-quality manufacturing processes. With customized production lines for various vehicle types and an annual capacity of 2000 units, JCM is well-equipped to support your 4x4 electric truck chassis projects. Our drive motor production line and battery manufacturing solutions further enhance our capabilities in the electric vehicle sector. For inquiries about our 4x4 electric truck chassis design and manufacturing services, please contact us at info@jcm-star.com.

References

1. Anderson, M. & Smith, J. (2022). "Advanced Chassis Design for Electric Off-Road Vehicles." Journal of Automotive Engineering, 45(3), 278-295.

2. Lee, K. et al. (2021). "Optimization of Battery Pack Placement in 4x4 Electric Truck Chassis." International Journal of Electric and Hybrid Vehicles, 13(2), 156-173.

3. Thompson, R. (2023). "Thermal Management Strategies for High-Performance Electric Powertrains in Off-Road Applications." SAE Technical Paper Series, 2023-01-0573.

4. Garcia, D. & Wilson, E. (2022). "Durability Testing Protocols for Electric 4x4 Truck Chassis." Proceedings of the Institution of Mechanical Engineers, Part D: Journal of Automobile Engineering, 236(8), 2101-2118.

5. Patel, N. (2023). "Modular Design Approaches for Maintainable Electric Off-Road Vehicles." International Conference on Advanced Vehicle Technologies and Integration, 125-139.​​​​​​​
